FEATURES AND USAGES:
The product is suitable for matching all kinds of compact electric appliance,such as all kinds of washing machincs,watcr pumps and electric tools.
Characteristics:
With high-quallity polypropylene film as the medium,it adopts advanced zinc aluminum film coating process,epoxy pouring,plastic casc(PBT,PPandABS),and flamc retardant structure.With the two means of insert and electric lead wire,the producls have the structures such as ordinary type,with inductance and combination .With the features such as high temperature resistance,low loss and long service life,the products have passed the certification of CQC.TUV.UL and CUL. |
|

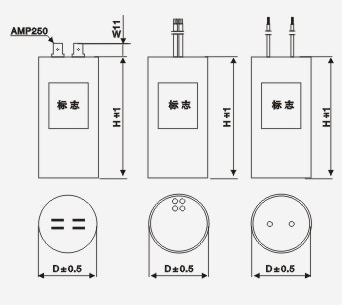

.Technical Specification |
| Item |
Capacitance(μF) |
Size(mm) |
| 1 |
1--6 |
Φ25×57 |
|
|
|
| 2 |
6--8 |
Φ30×60 |
|
|
|
| 3 |
6--8 |
Φ35×60 |
|
|
|
| 4 |
8--15 |
Φ35×70 |
|
|
|
| 5 |
8--15 |
Φ40×60 |
|
|
|
| 6 |
8--20 |
Φ40×70 |
|
|
|
| 7 |
12--30 |
Φ40×90 |
|
|
|
| 8 |
20--25 |
Φ42×70 |
|
|
|
| 9 |
25--30 |
Φ42×80 |
|
|
|
| 10 |
25--35 |
Φ42×90 |
|
|
|
| 11 |
25--30 |
Φ45×70 |
|
|
|
| 12 |
25--40 |
Φ45×90 |
|
|
|
| 13 |
25--45 |
Φ45×100 |
|
|
|
| 14 |
30--45 |
Φ50×80 |
|
|
|
| 15 |
40--50 |
Φ50×90 |
|
|
|
| 16 |
40--50 |
Φ50×100 |
|
|
|
| 17 |
45--55 |
Φ50×110 |
|
|
|
| 18 |
50--60 |
Φ50×120 |
|
|
|
| 19 |
60--75 |
Φ55×100 |
|
|
|
| 20 |
75--90 |
Φ55×120 |
|
|
|
| 21 |
90-110 |
Φ60×120 |
|
|
|
| 22 |
100-120 |
Φ60×135 |
|
|
|
| 23 |
120-150 |
Φ60×150 |
|
|
|
|
|
Technical Specification
Confifuration:Plastic Shell,Dry,Flame Retardant
Temperature:-40℃-85℃
Capacitance Tolerance:±5%
Dissipation Factor:Tan δ
.≤0.002
Factorytesting Voltage and Time:T-T:2.0Un 2s
Insulation Rosistance:T-T:≥3000MΩ.μF
Series connection Inductance:It can be Interconnected Requirod
Nominal frequency:50/60Hz
Safety Class:PO
Life Class:B,C
FEATURES AND USAGES:
.None induction winding structure of metallic pOIyprOpylene membrane.
.Use round plastic shell andinsulation sealedl forsealing plasticlidfor sealingor resinforsealing.
.Highinsulating resistance,littletemperature changinginside,excellent stabilityof capacitance.
.Non—toxic and non—leakage,profit enci ronmental protection.
.Suitableforsta~ingandope rating 50Hz(60Hz)AC single-phaseelectromtor.
.Applytomotor,waterpump,washer,electricfan,householdappliances etc.

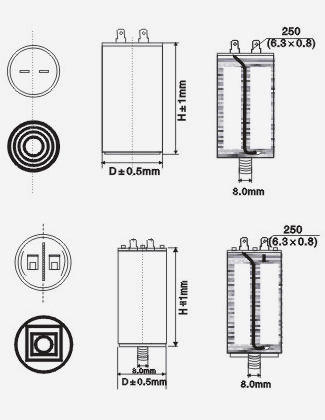

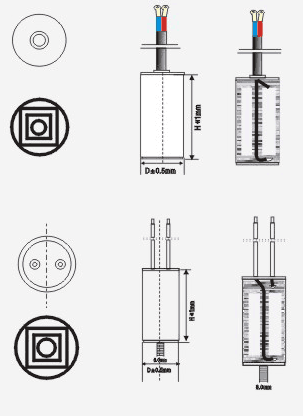

.Includeslug,wire orcableterminals;bottomwith boltorwithout bolt.We can design and manufacture products according to custome rs requirements. |
|
|
MAIN TECHICAL PARAMETER:
Working Temperature:-25℃~+70℃
Capacitance Range:0.5μF~155μF
Rated Voltage:250VAC~500VAC
CapacitanceTolerance:±5％±10％
insulation Resistance:Between leading-outends:≥3000MΩμF
Betweenleading—outendand shell:≥1000MΩ
Dissipation Facto r:tgδ≤0.002(50Hz)
EnduranceVoltage:Betweenleading-Out2.OUR,10S
Betweenleading,out endand shell:2,200V AC,10S
.Single Type A.C.RUN CAPACITR |
| MFD |
450AVC |
250AVC |
| D(mm) |
H(mm) |
D(mm) |
H(mm) |
| 1 |
30 |
50 |
30 |
50 |
|
|
|
|
|
| 3 |
30 |
50 |
30 |
50 |
|
|
|
|
|
| 5 |
30 |
50 |
30 |
50 |
|
|
|
|
|
| 8 |
35 |
60 |
30 |
50 |
|
|
|
|
|
| 10 |
35 |
60 |
30 |
50 |
|
|
|
|
|
| 12 |
35 |
70 |
35 |
60 |
|
|
|
|
|
| 15 |
38 |
70 |
35 |
60 |
|
|
|
|
|
| 18 |
39 |
70 |
35 |
60 |
|
|
|
|
|
| 20 |
40 |
70 |
35 |
60 |
|
|
|
|
|
| 25 |
42 |
80 |
34 |
68 |
|
|
|
|
|
| 30 |
42 |
90 |
42 |
70 |
|
|
|
|
|
| 35 |
45 |
90 |
42 |
70 |
|
|
|
|
|
| 40 |
50 |
90 |
42 |
70 |
|
|
|
|
|
| 45 |
50 |
90 |
42 |
90 |
|
|
|
|
|
| 50 |
50 |
100 |
42 |
90 |
|
|
|
|
|
| 55 |
50 |
100 |
45 |
90 |
| 60 |
50 |
100 |
45 |
90 |
|
|
|
|
|
| 70 |
50 |
120 |
50 |
100 |
|
|
|
|
|
| 80 |
60 |
120 |
50 |
100 |
|
|
|
|
|
| 90 |
60 |
120 |
50 |
100 |
|
|
|
|
|
| 100 |
60 |
120 |
50 |
100 |
|
|
|
|
|
|
|
|
